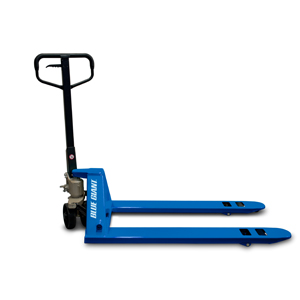

EPT-55 Manual Pallet Truck

The EPT-55 Manual Pallet Truck has a robust and functional design that results in long-term use and dependability.

CAPACITY

• 5500lbs (2487kgs)

PERFORMANCE

• 200-degree operational arc for excellent maneuverability
• Ten full strokes to reach maximum elevated height of 7.8” (198mm)
• Simple and precise steering control and lift / lower functions
• 52 ½" (1334mm) turning radius
• Climber rollers for easy entry into pallets
• Lowering can be actuated by hand or foot pedal release

ERGONOMICS

• Large hand grip with curvilinear design and additional padding for easy and comfortable hold
• Three position control lever (lift, neutral, lower) for fingertip control
• Strong spring returns the handle to an upright position once released

STRUCTURAL INTEGRITY

• Fork size: 27" x 48" (686mm x 1219mm) standard
• Tapered forks and entry and exit rollers support smooth pallet handling
• Galvanized hydraulic pump with overload relief valve
• Heavy-duty frame is constructed from a one-piece formed channel
• Adjustable push rods make roller height adjustment easier
• Cast-iron hangers for greater strength and longevity
• Grease fitting and pushings at all pivot points for easy maintenance

RECOMMENDED APPLICATIONS

• Any location where palletized loads need to be transported

AVAILABLE OPTIONS

• 20 ½" x 48" (521mm x 1219mm) forks
• Galvanizing
• Stainless steel
